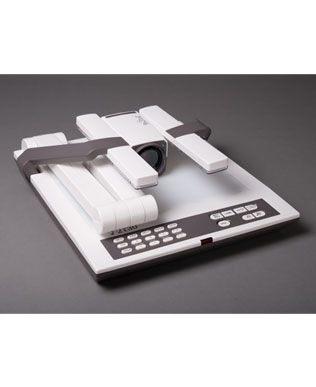

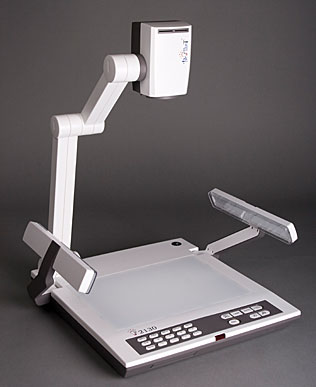

The i-2130 is equipped with a 3 Megapixel CMOS image sensor that offers SXGA cyrstal clear image quality at SXGA resolution. It has 9x optical zoom and 12 x digital zoom. With a built-in video to VGA scaler, it enables you to connect 2 video devices and 2 computers into the i-2130 and output all signals via one VGA cable to a projector or any other display divice. It houses a set of teacher friendly features including image mirror, freeze, split screen and text mode. The eco-friendly dual arm lights and backlight are cool to the touch and murcury content free.
- Cystal clear native SXGA resolution powered by 3-megapixel CMOS image sensor
- Powerful 108X zoom (9x optical and 12x digital) and High Speed Auto Focus
- Integrated system solution offered by multiple inputs and outputs including VGA, C-Video, S-Video, audio inputs, VGA, C-Video, S-Video and audio output
- Built-in video to VGA scaler
- RS232 for external control
- Image mirror, freeze
- Split screen, text mode
- 12 image internal storage and recall
- Plug and play USB 2.0 for image capture
- LED dual arm lights and A4 size backlight
- Model No. : i-2130
- Sensor : 1/3" CMOS
- Total pixel : 3 Megapixel

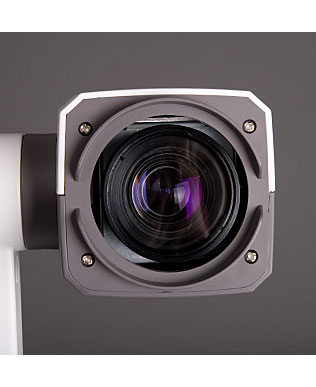

- Zoom : 9x optical, 12x digital
- Frame rate : 20
- Shooting area : Max: 13.5"x10.6"/34.3cm x 26.9cm Min: 0.1"x0.1"/0.3cm x 0.3cm
- Focus : Auto/manual
- Native output signal : SXGA(1280x1024@60Hz)
- Converted output signal : XGA(1024x768@60Hz)
- Resolution (Horizontal) : 750 TV lines plus
- Image mirror : Yes
- Image capture : Yes (image: 12 picture)
- OSD : Yes
- White Balance : Yes
- Image split : Yes
- Color adjustment : Yes
- Brightness adjustment : Yes
- Black and white/color conversion : Yes
- Positive/negative conversion : Yes
- Image freeze : Yes
- Video scaler : Yes

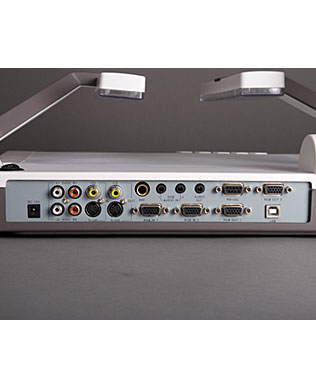

- INPUT TERMINALS : VGAx2, Video x 1
- OUTPUT TERMINALS : VGAx2, VIDEOx1
- OTHER TERMINALS : USB2.0x1 (USB camera),RS232(computer controllable)x1
- Remote control : Yes
- Light source : Arm light×2(LED) A4 size lightbox(LED)
- Operating temperature : 32° F to 104° F/ 0° C to 40° C
- Dimensions : Folded: 15.9" x 16.7" x 6.1"/ 40.4 cm x 42.4 cm x 15.5 cm, Setup: 18.7" x 16.7" x 22.3"/ 47.5 cm x 42.4 cm x 56.6 cm
- Power supply : 12V DC power adapter
- Weight(net) : 11lbs/5kg
|
